Pipelining Supplies - Elastic Liner Range
Pipelining a drain, sewer or vertical stack downspout pipe with bends? We have the solution. We supply a range of elastic knitted and woven pipeliners coated with a PU and PVC blend for extra flexibility will make easy work negotiating round multiple bends and in most cases these materials will expand diametrically to transition 2 different pipe sizes.
Pipelining a drain, sewer or vertical stack downspout pipe with bends? We have the solution. We supply a range of elastic knitted and woven pipeliners coated with a PU and PVC blend for extra flexibility will make easy work negotiating round multiple bends and in most cases these materials will expand diametrically to transition 2 different pipe sizes.
Pipelining Supplies and CIPP Products since 1989
|

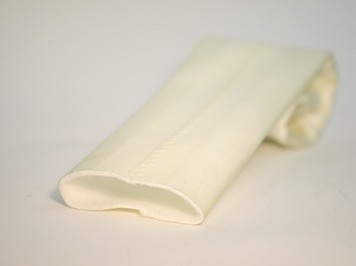

Got to line a vertical downspout or stack ? Worried about the weight of resin on standard liner thickness. Need something thin but flexible? Got to transition in size from 2"- 3" or 3" - 4" ? Yep we got it! Want to use polyester, epoxy or silicate resin with it? No problem. This thin walled elastic Liner is great for Vertical down pipes and gutters. Due to its elastic knitted base material, the liner will effortlessly fly round multiple bends, even when double inverted with a combo cal tube. Upstream, Downstream, Blind shot ? Does not matter with this product. Manufactured in 3",3,5",4" sizes with non-structural finished thickness of 1.5-2.0mm thick. |

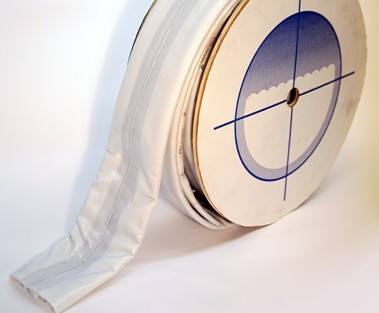

Got internal pipes to reline. Need something that will fly round bends and expand by up to 50% for diametric transitions, this is the real deal. The liner is made out of knitted elasticated polyester fibre and the coating is compatible with all known polyesters, silicate and epoxy resins. Subject to volume we are able to custom manufacture the product to specific sizes. Manufactured in 1.5",2",2.5",3" sizes with a finished thickness of 1.5 - 2mm thick |
Drain Pipe with single 90 degrees ? Piece of cake !..With Pipe with multiple 90 degrees ? No Problem. Uncontrolled Longitudinal stretch ? No way. This elasticated liner has maximum stretch in the radial direction and next to none in the longitudinal direction. Unlike other knitted and other woven liners on the market you can reline pipe networks with bends and still feel confident about the termination length.. Product Available in 4",5" and 6" sizes and with a finished thickness of 3.5 - 4mm thick |
In certain parts of the world, Transitions from 4 inch to 6 inch are an every day reality. One solution is the use of pre-tailored transition bags. But what a waste !!! One contractor analysed his waste once and was staggered to find that there was 39% waste. The other way round it is to line the pipe in 2 hits, but this not always possible and is wasteful on labour, the most expensive component in CIPP. Transition Liner expands from 4 -6 inch without loss in liner thickness. It allows, One job to be executed with One Liner in One shot. True efficiency! Produced in one size only for a finshed thickness of 3.5 - 4mm thick. |
| Sizing: 3, 3.5, 4, 5, 6" (75, 87.5,100,125, 150mm) | Sizing: 1.5, 2, 2.5, 3" (37.5, 50, 67.5mm,75mm) | Sizing: 4, 5, 6 (100,125,150mm) | Sizing: 4, 5, 6 (100,125,150mm) |
| Coating Type: Soft PU/PVC Blend | Coating Type:Soft PU/PVC Blend | Coating Type:Soft PU/PVC Blend | Coating Type:Soft PU/PVC Blend |
| Inversion Resistance: Low | Inversion Resistance:Low | Inversion Resistance:Low | Inversion Resistance:Low |
| Burst Pressure: Medium | Burst Pressure: Medium | Burst Pressure: Medium | Burst Pressure: Medium |
| Resins: Most Epoxies, Polyesters, Silicate | Resins: Most Epoxies, Polyesters, Silicate | Resins: Most Epoxies, Polyesters, Silicate | Resins: Most Epoxies, Polyesters, Silicate |
| Temp resistance: 50 deg C(120 deg F) | Temp resistance: 50 degC(120 deg F) | Temp resistance: 50 degC(120 deg F) | Temp resistance: 50 degC (120 deg F) |
| Seam Type: Stitched + Welded Tape | Seam Type: Stitched + Welded Tape | Seam Type: Stitched + Welded Tape | Seam Type: Stitched + Welded Tape |
| Thickness: 1.5 - 2.0mm | Thickness: 1.5 - 2.0mm | Thickness: 3.5 - 4.5mm | Thickness: 3.5 - 4.5mm |
| Bends Ability: 120 deg | Bends Ability: 90 deg | Bends Ability: 90 deg | Bends Ability: 90 deg |
| Possible Methods: Direct Inversion, Invert and Invert,Invert and Inflate, Double Inversion | Possible Methods: Direct Inversion, Invert and Invert,Invert and Inflate, Double Inversion | Possible Methods: Direct Inversion, Invert and Invert,Invert and Inflate, Double Inversion | Possible Methods: Direct Inversion, Invert and Invert,Invert and Inflate, Double Inversion |
Downpipe
Pipelining Liner
Pipelining Liner
Micro
Pipelining Liner
Pipelining Liner
Multi Bend
Pipelining Liner
Pipelining Liner
Transition
Pipelining Liner
Pipelining Liner
