Drain Lining Supplies and Materials - Range of Calibration Tubes and Bladders

Choice of Cal tube for calibrating a drain liner is possibly the most important component of a drain lining system. We have a range of calibration tube products for different CIPP relining situations. From high temeperature, to strechy, we supply a product or material that will fit the purpose, please select your choice of drainlining bladder from our wide range below. Question on which one to choose...Call Us 1 866 535 3694

Picture of one of our Lateral Lining Products for sale

Home

Pipe lining Supplies & Products

Pipe lining Information Library

CIPP Lining Solutions - FAQ

Click Here for Pipelining Supply Prices

Elastic Liner Materials Manufactured for Pipelining

...>>>.Click Here for More Info

Felt Liner Materials
Manufactured for Pipelining

...>>>.Click Here for More Info

Cal Tube Materials
Manufactured for Drain Lining

...>>>.Click Here for More Info

Polyester Resin Materials Manufactured for Drain Lining

..>>>.Click Here for More Info

Non VOC Resin Materials Manufactured for Drain Pipe Lining

..>>>.Click Here for More Info

Point Repair Products
Manufactured for Pipe Lining

..>>>.Click Here for More Info

Point Repair Bulk Products Manufactured for Drain Pipe Lining

..>>>.Click Here for More Info

Need advice on CIPP Drain Pipe Lining ???- FAQ

...>>>.Click Here for More Info

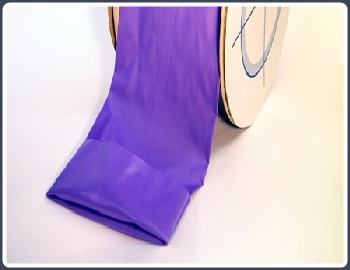

Mediumtube
Drain Lining Cal Tube

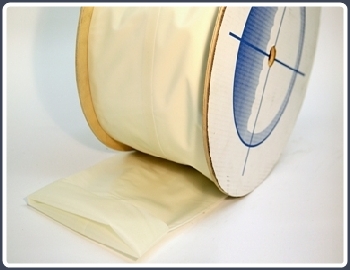

Visutube
Drain Lining Cal Tube

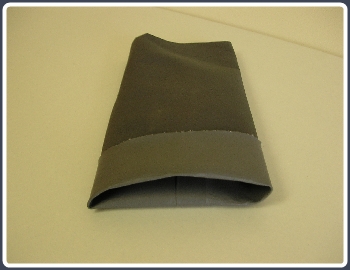

Strechitube
Drain Lining Cal Tube

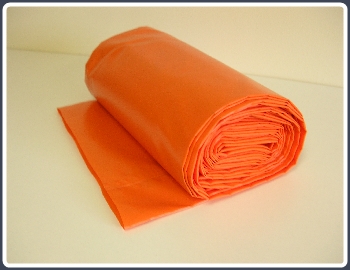

Thermotube
Drain Lining Cal Tube

A Do-It-All bladder with a unique blend of high burst strength yet easy to Invert. The bladder is prelubricated to enable easier inversion and just as importantly, easier retraction	A Translucent bladder with a unique blend of high burst strength yet easy to Invert. Enables CCTV vision on single enders	An elasticated yet reinforced bladder that makes easy work of negotiating round 90 degree bends. The ease of inversion makes it a great bladder for double inversion	A High Temperature Resistant Bladder stitched to deliver Ultra Heavy duty strength. Designed for those not willing to compromise on the burst strength of the bladder
Sizing: 2,3,4,6" (50,75,100, 150mm)	Sizing: 2,3,4,6" (50,75,100, 150mm)	Sizing: 1.5,2,3,4,5" (35, 50, 75, 100, 125mm)	Sizing: 6,9,12"(150, 225, 300mm)
Stretch Ability: c 1%	Stretch Ability: c 1%	Stretch Ability: c 50%	Stretch Ability: Nil
Inversion Resistance: Medium	Inversion Resistance: Medium	Inversion Resistance: Low	Inversion Resistance: High
Burst Pressure: Medium-High	Burst Pressure: Medium-High	Burst Pressure: Low-Medium	Burst Pressure: Ultra High
Weight of material: 300 grm/m2	Weight of material: 300 grm/m2	Weight of material: 300 grm/m2	Weight of material: 1000 grm/m2
Temp resistance: 110 deg F	Temp resistance: 110 deg F	Temp resistance: 90 deg F	Temp resistance: 160 deg F
Seam Type: Welded overlap	Seam Type: Welded overlap	Seam Type: Welded overlap	Seam Type: Welded overlap and stitched
No Dig Processes Used: Clean Out Liner, Plumb Liner	No Dig Processes Used: Clean Out Liner, Plumb Liner	No Dig Processes Used: Junction Liner	No Dig Processes Used: Town Liner
Bends Ability: Average	Bends Ability: Average	Bends Ability: High	Bends Ability: Low
Possible Methods: Invert and Invert, Pull-in and Invert, Double Inversion	Possible Methods: Invert and Invert, Pull-in and Invert, Double Inversion	Possible Methods: Double Inversion	Possible Methods: Invert and Invert, Pull-in and Invert
Roll lengths: 50, 100m (164 , 328 ft)	Roll lengths: 50, 100m (164 , 328 ft)	Roll lengths: 50, 100m (164 , 328 ft)	Roll lengths: To Order.
